Liquid Filling

Candle Resources

Cost-Efficient Solutions for Liquid Filling



Precision Filling, Drip-Less Heads, Siemens Controllers, Versatility and Flexibility

Once again, OMP has found an innovative solution for a frequent problem facing candle makers-drips.

The heads on OMP fillers are designed to seal perfectly after every pour, eliminating the risk of drips that soil jarware, and eliminating the need for O-rings, meaning less downtime for maintenance.


  • Dispenser can be adjusted vertically and horizontally over containers
  • Photo-eye fill activation
  • Jacketed tank
  • Stainless Steel construction
  • Pneumatically activated
  • PLC controller
  • Temperature controlled tank with electric heaters
  • Built to the candle maker’s requirements
  • Rapid cleaning process for color changes

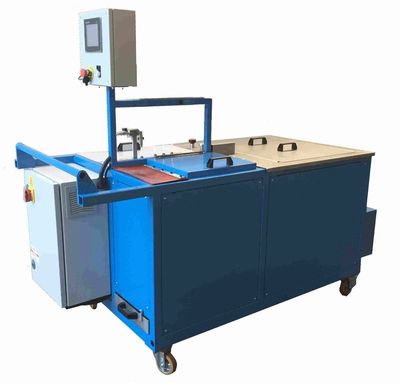

Mixer Pumper Filler

ALL-IN-ONE DISPENSING SYSTEM

WAX MELTER - FILLING SYSTEM - FRAGRANCE/COLOR MIXING


One Person Operation


  • At the touch of a button, the container is filled with wax + scent + dye, leaving the main tank virgin.
  • Every pour fills the container with the exact amount of wax, producing a consistent product. Wax temperature is digitally controlled for precise and constant dosing.
  • Only the highest-quality parts and components are used in the machine’s construction.
  • Sturdy construction, fully insulated, mounted on pivot wheels.
  • Double-jacketed stainless steel tank heats wax using indirect heat. The heating elements are in an oil bath that uniformly distributes the heat, protecting the wax from hot spots that can alter the properties of the wax blend.
  • Container changeovers are as easy as changing the pouring settings and parameters.
  • Control panel with PLC and touch panel.
  • Timer for setting the start time for heating the melting tank. No need to wait for the wax to reach temperature, have it start heating in advance.
  • Optional fragrance flow detection to ensure that fragrance is flowing during the pour.


Model OMP-245

Candle Resources
Candle Resources

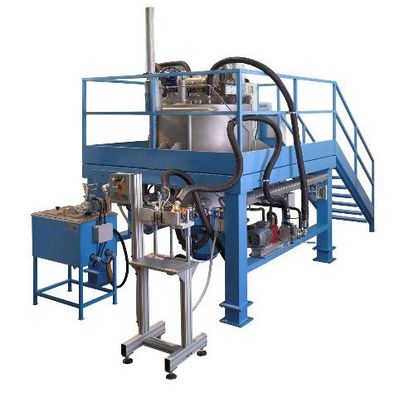

Slurry-Paste Filling

Engineered for Production Efficiency


Slurry / Paste Filling is the most efficient method of producing container-filled candles. The paste consistency of the wax blend at pour results in less labor and handling during the production process and substantially reduced candle cooling times, resulting in space savings in the production facility. This production technology also results in raw material savings and consistent quality.



Advantages of the OMP Slurry System:


  • Multiple mixing groups in the transformation tank produce a smooth, well-mixed, homogeneous paste for a quality finished product and reduce paste production times.
  • A precision temperature control system for uniform temperature throughout the tank, whether processing large production batches or small test runs.
  • Automatic wick insertion and gripping system secure the wick while grippers hold the wick during fill to ensure a perfectly centered and straight wick.
  • Quick clean process of tank and hoses.
  • System-wide temperature control and sensor control ensure the consistent quality of the finished product.
  • Compact design and eliminating the need for long cooling conveyors result in floor space savings.
  • User-friendly controls for easy operation.
  • Precision temperature-controlled fill heads provide a rapid and smooth fill.
  • In-line color and fragrance mixing reduce downtime for color changes.

The OMP Slurry System processes paraffin, blends of paraffin, vegetable waxes, soy, palm, and hydrogenated waxes

The slurry is made by taking the wax blend below the melt-point and keeping it in motion at a controlled temperature so that it remains in a slushy, paste consistency. This paste is dispensed near its congeal point, resulting in substantially reduced cooling times and savings in floor space. The consistency of the slurry at pour facilitates the manufacturing process by requiring less handling and labor. The process results in raw material savings, versatility, and a finished product of constant quality.

Candle Resources
Candle Resources

Leader in Slurry Technology

OMP’s long experience with slurry technology puts them in a leading position to lend their expertise to the candle maker in processing the large range of waxes and blends on the market today. After years of research and development, in 1995, OMP placed the first slurry systems on the market. Since then, OMP has installed systems worldwide, improving and refining the technology over the years.

OMP Builds to Your Requirements

The OMP Slurry System is available in production outputs to meet all candle-making requirements. From manually-activated units to completely automatic multiple-tank systems. Slurry systems and installations can be configured in rotary or linear layouts.

Officine Meccaniche Pontida
